5KV

10KV

15KV

20KV

25KV

30KV

35KV

40KV

45KV

50KV

55KV

60KV

0W

1.Voltage test unit 5kv~60kv
2.Temperature coefficient of 10ppm / ℃
3.0.5%, 0.25%, 0.05%, 0.01% accuracy optional
4.Metal shell, six-sided shielding
5.Small size, light weight
6.Shell have a dedicated ground terminal
7.An indispensable tool for testing voltage

5KV

10KV

15KV

20KV

25KV

30KV

35KV

40KV

45KV

50KV

55KV

60KV

0W

1.Voltage level from 5kv to 60kv

2. Metal shell, six-sided shielding

3. Small size,light weight

4. Shell have a dedicated ground terminal

5.An indispensable tool for testing ripple

100KV

200KV

400KV

600KV

0W

1.High Input Impedance

2.25ppm Temperature Coefficient

3.100kV, 200kV and 400kV Models

4.Corona Free Operation

5.0.5% Accuracy (higher accuracies available)

10KV

0W

Silicone oil

10KV

0W

Insulation grease

10KV

0W

Insulation grease

50KV

50W

1.Max anode current: 1.0 ma

2.Max anode voltage: 50 kv

3.Maximum power: 50 w continuous

4.Nominal filament voltage: 2.0 v @ 50 kv, 1 ma

5.Max filament current: 1.7 a

6.Stability: 0.2% over 4 hours

7.Focal spot size (nominal*): 110 μm

8.Anode material: w, mo, rh (other materials available)

9.Be window thickness: 125μm (75 μm, 250μm options available)

10.Approximate weight: 4 lbs (1816 g)

11.Cooling method: forced air @ 150 cfm

12.Cone angle: 25

60KV

0W

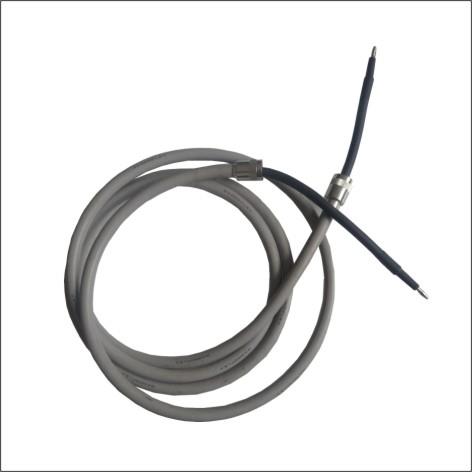

60KV silicone rubber high voltage cable assembly. 1 core.

75KV

0W

1.Small diameter, OD:10.mm, ID:7.1mm

2.Highly flexible cable types with 95% shielding coverage

3.Rated for up to 75 kVDC

4.OEM customization available

75KV

0W

Receptacle cb100c3, 3 pins, rated for up to 100 kvdc.

75KV

0W

1.Small diameter

3.High temperature 100°c rated plugs,4 pins

3.Highly flexible cable types with 95% shielding coverage

4.Rated for up to 75kvdc

5.OEM customization available

100KV

0W

Receptacle cb100c3, 3 pins, rated for up to 100 kvdc.

100KV

0W

1.A wide choice of small diameter, highly flexible cable types with 95% shielding coverage, rated for up to 100 kvdc.
2.High temperature 100°c rated plugs, with replaceable spring contact pins.
3.Maintenance-free plugs if silicone washer version is used.
4.Small diameter flange - cable assemblies are slipped in easily ring nut and bolted type divided flange for positive grounding to be mounted later.
5.Unique moulded-on soft pvc sleeves, assuring maximum cable stress relief with optimal bending and flexing features to ensure long life endurance.

75KV

0W

1.Small diameter

2.High temperature 100c rated plugs,3 pins

3.Highly flexible cable types with 95% shielding coverage

4.Rated for up to 75kvdc

5.OEM customization available

0KV

0W

1. 8 channels of 12 bit analog to digital converters
2. 4 channels of 12 bit digital to  analog converters
3. 1 relays/interlocks Rs232 interface
4. 115k bits per second
5. No parity
6. 8 data bits
7. 1 stop bit
8. DB-9 connector (as shown)

10KV

20KV

30KV

40KV

0W

1. Excellent moisture-proof, anti-oxidation and anti-radiation properties

2. Excellent flexibility, can be bent at will, easy to install

3. Suitable for use under ambient temperature of +180℃~-60℃

4. Wire core: 22Awg (customization), material tinned copper wire

5.Insulation layer: silicone rubber

6.Color: red, white, black

75KV

0W

75KV high voltage cable assembly. 1 core.

50KV

0W

50KV high voltage cable assembly. 1 core.

5KV

10KV

0W

This tester uses the principle of Q meter to test the interlayer withstand voltage and noise of various high voltage coils and other related coils.
